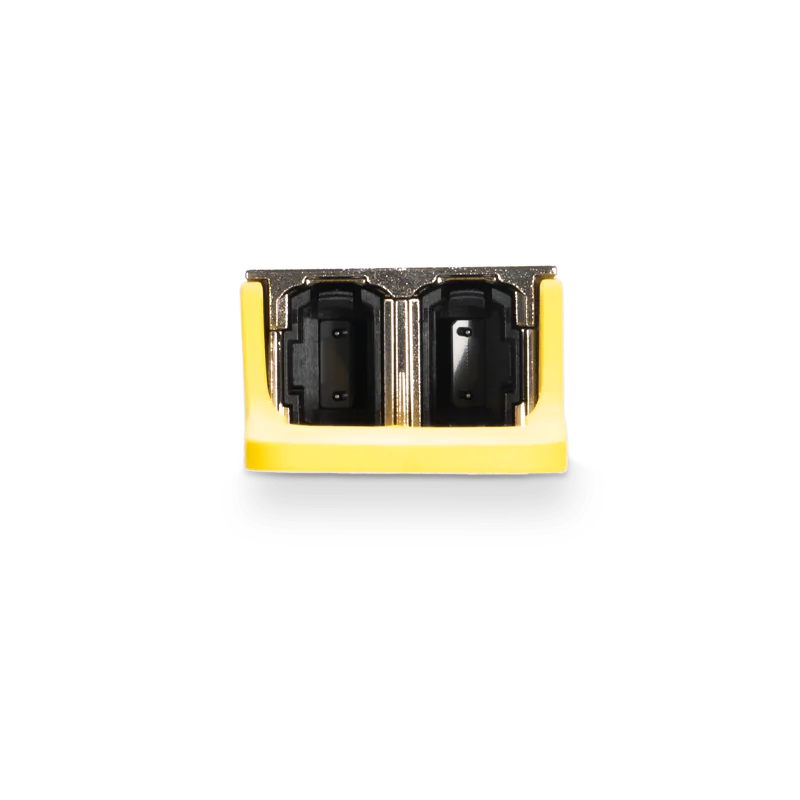

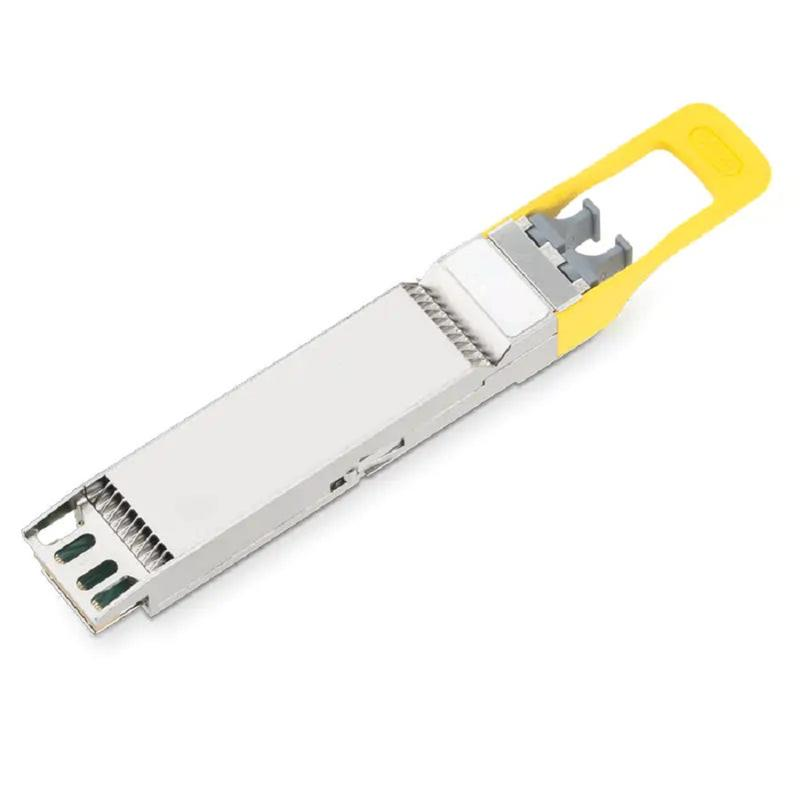

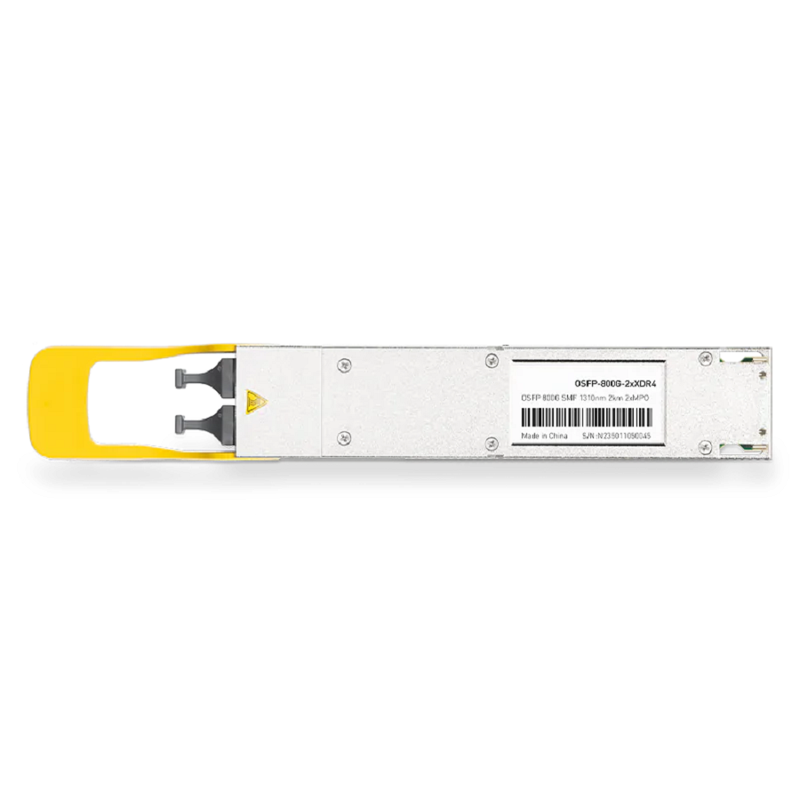

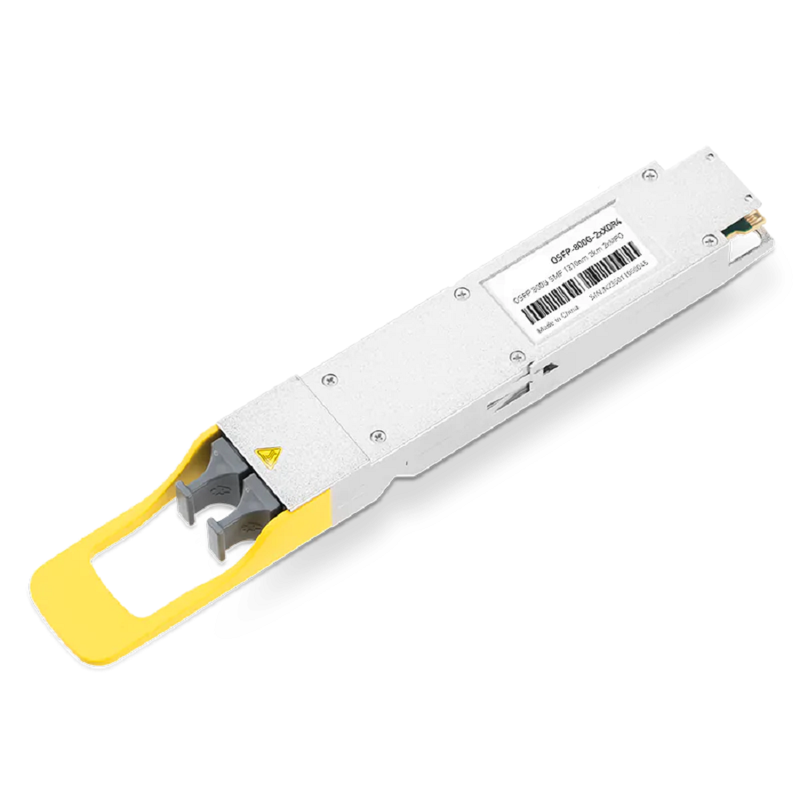

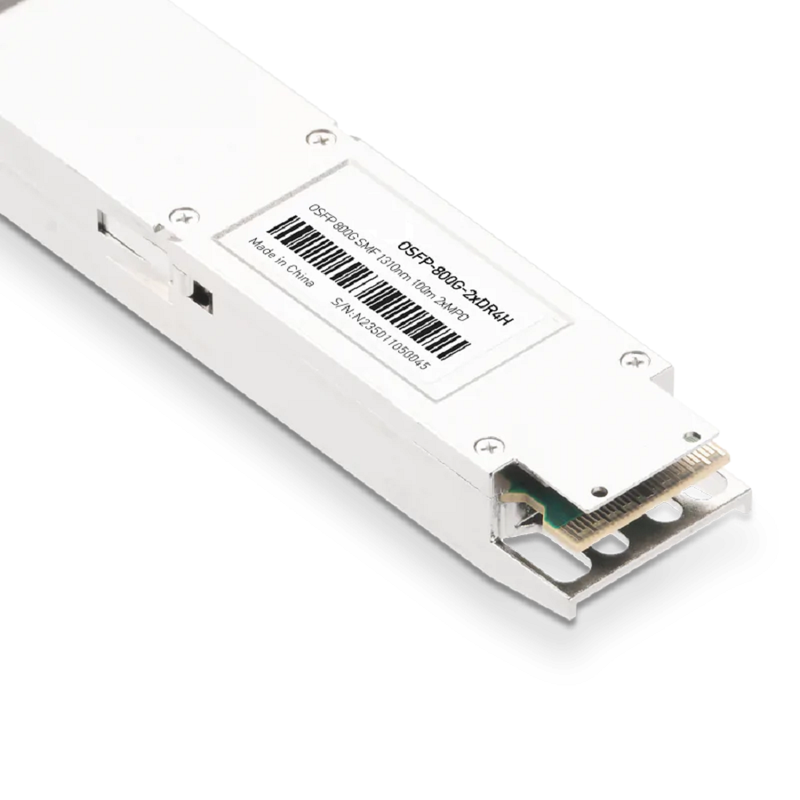

Description NADDOD OSFP-800G-2DR4LH Optical Transceiver Module is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 100G-PAM4 modulation and has a maximum fiberreach of 500-meters using 8 single mode fibers. The Twin-port 2xDR4/DR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage. The main application for OSFP-800G-2DR4LH is linking two switches together with up to 500 meters.
