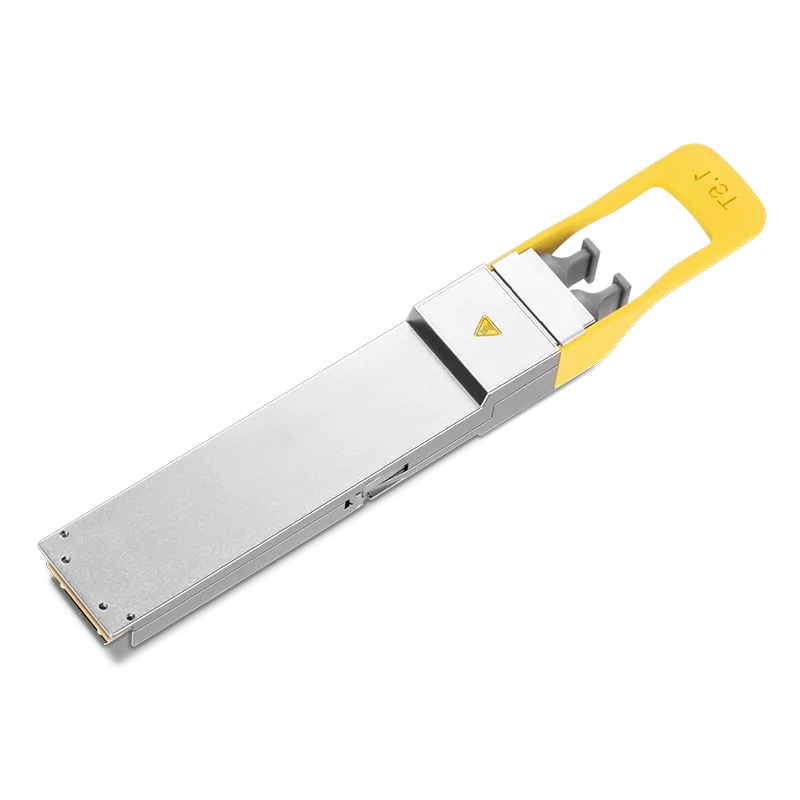

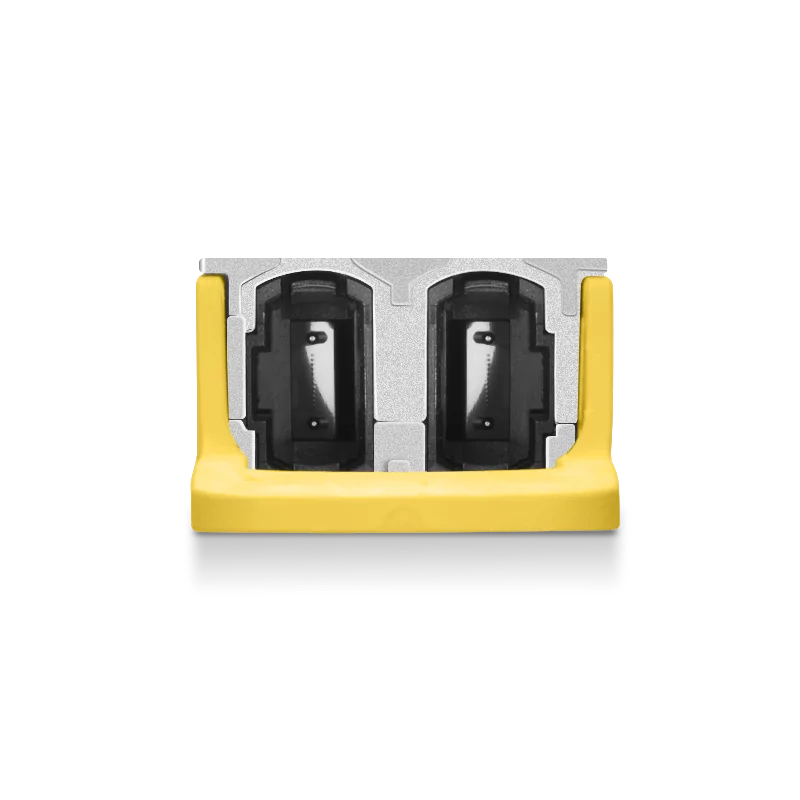

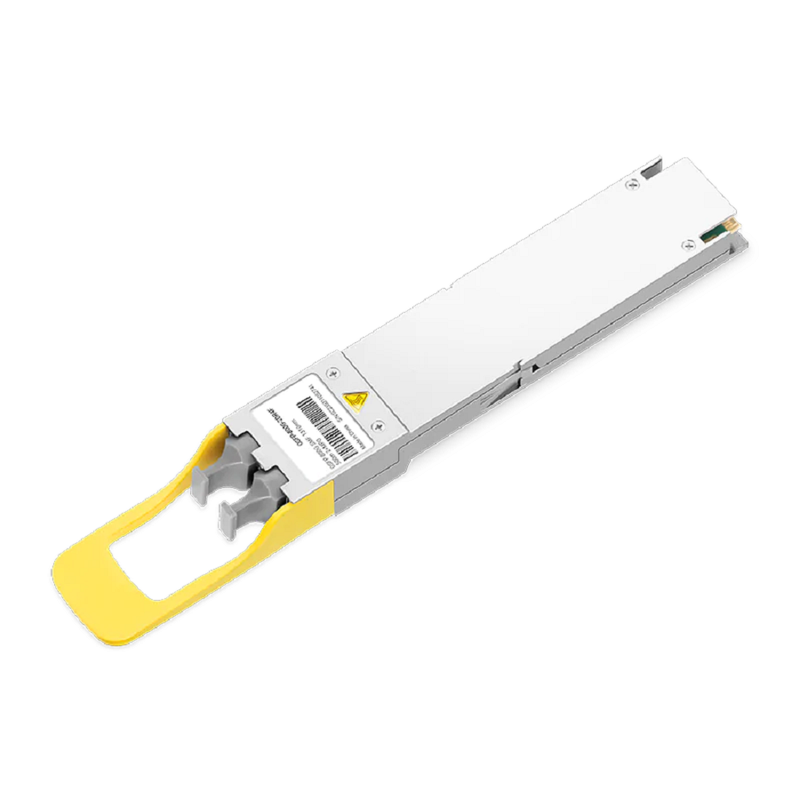

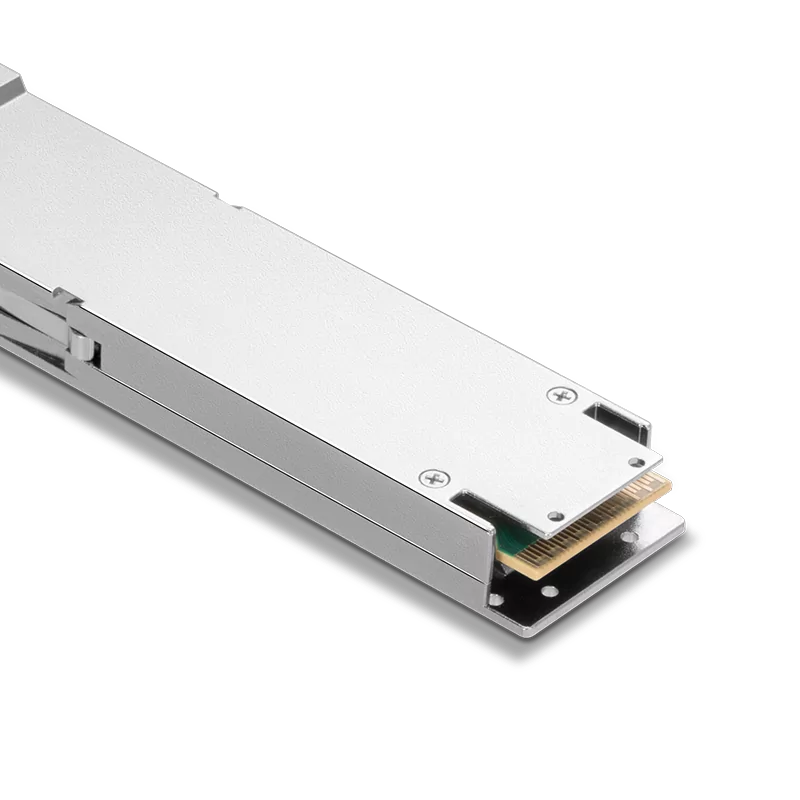

Description NADDOD OSFP-1.6T-2DR4F is a 1.6Tb/s twin-port OSFP224 optical transceiver compatible with Juniper, supporting Ethernet networks with 2 × 800Gb/s links. It is designed for high-performance data center interconnects and next-generation HPC applications. The 1.6T OSFP 2xDR4 transceiver features a parallel 8-channel design (2 × DR4/DR8) over single-mode fiber, utilizing 200G-PAM4 electrical and optical modulation. Each port connects via a 4-channel MPO-12/APC optical connector, enabling 800Gb/s per connector. The module supports a maximum fiber reach of 500 meters over 8 single-mode fibers, providing reliable medium-distance links within the data center. The OSFP224 housing incorporates a Flat Top / RHS design for improved heat management and stable operation in densely packed switch environments.
Built on silicon photonics chip, the 1.6T OSFP 2xDR4 transceiver achieves higher integration, lower power consumption, and greater port density, while the Broadcom 3nm Sian3 (BCM83628) DSP delivers robust PAM4 signal processing with ultra-low bit error rates (BER) and stable link performance, enabling reliable, low-latency 800G/1.6T interconnects. This module is ideal for Juniper 1.6T QFX5250 Series Switch, providing high-bandwidth, low-latency links in AI, and HPC data center networks.
